Comprehensive Hydraulic Pump Test Bench
Test Items:
1, displacement test: no-load pressure, discharge measurement.
2, volume efficiency test: the volume measurement efficiency under rated operating conditions,
3, power test: start power, rated power, overload power.
4, overload test: maximum displacement of hydraulic pump or motor (high speed), nominal speed, rated pressure of 110% or the maximum pressure of running for 1 minutes or less.
5, torque test: input torque of hydraulic pump, shaft end torque of hydraulic motor (reverse test)
6, external leakage test: in the above test, check the leakage. of the sealing parts.
7, Auxiliary test for hydraulic valve and hydraulic cylinder, etc..
Function and parameters of the test bench
1, drive mode: by electric motor , power 160kw
2, speed mode: frequency control 0-3000r/min.
3, loading mode: computer proportional relief valve double-way loading 40MPa. Able to test duplex pump.
4, the maximum flow rate: ≦ 500L/min
- The maximum flow rate of low-pressure auxiliary system ≦ 330L/min 5,
the maximum pressure auxiliary system: 35MPa
6. The maximum flow rate of high pressure auxiliary system 34L/min,
the maximum pressure auxiliary system: 31.5MPa
7, temperature range for test bench: 0-60℃
8, medium temperature natural cooling.
9, power requirements: AC380V 300A
10, sensors and control power supply: DC24V
11, the computer automatically generates test reports, curves, data acquisition
For more inofrmation, please contact me
|
|

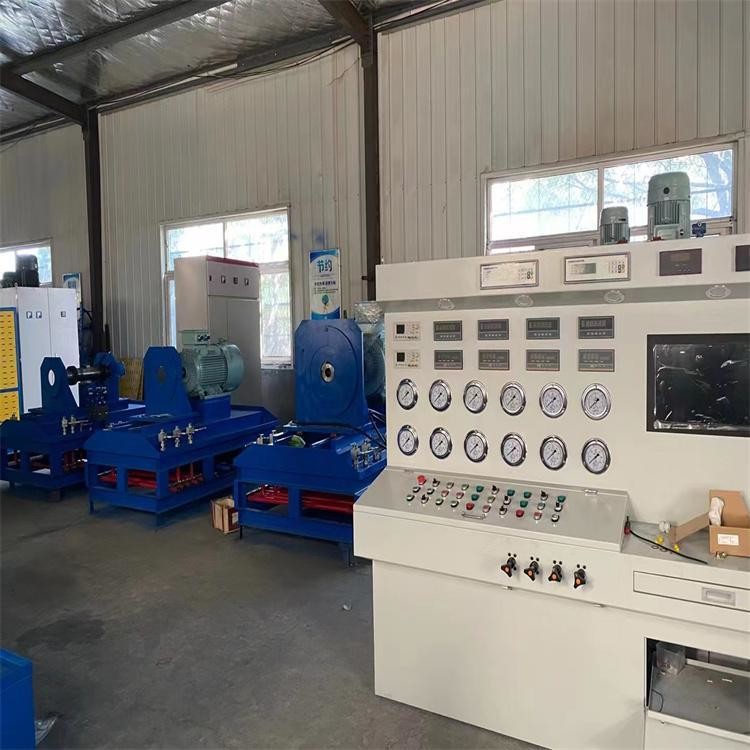

High Standard hydraulic Pump Test Bench with Precise Pressure Control and Advanced Safety Images
|
